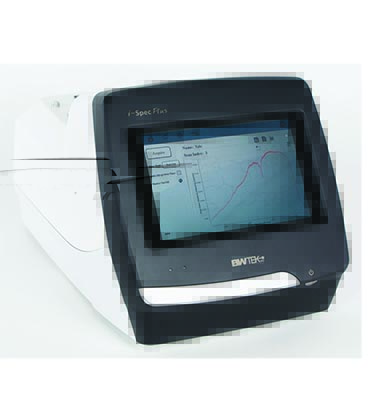

B&W Tek i-Spec® Plus Diffuse Reflectance NIR Analyzer

B&W Tek i-Spec® Plus Diffuse Reflectance NIR Analyzer

  • Portable Rugged All-in-one Design
  • Touchscreen operation or external computer
  • Press-holder and optional turntable sample stage
  • Various data format options available






Description

The i-Spec Plus is a diffuse reflectance near-infrared spectrophotometer platform with a built-in integrating sphere and tablet PC, making it perfect for customers to develop mobile applications. The large spot size and optional rotating sample turntable provide more representative sampling for large and heterogeneous samples. Models developed in our chemometric software may be transferred to onboard software (BWSpec®Mobile) for NIR analysis anywhere, especially when combined with the battery pack option. The i-Spec Plus may also be connected to a PC to utilize further data processing power with our proprietary BWSpec software, and for model-building with BWIQ. SDKs are available for system control, allowing OEMs to develop custom interfaces. Communication via Wi-Fi and Bluetooth is available on the tablet PC.

Applications:

  • Feed and Forage (fat, protein, & moisture)
  • Textiles & fibers
  • Agriculture: leaves, fertilizers, fruit
  • Carpet & plastics recycling
  • Food counterfeiting
  • Edible oil.

Specifications

Wavelength 900 – 1700nm 1100 – 2200nm
Resolution 4nm FWHM 10nm FWHM
Min. Scan Time 200μs 250μs
Measurement Diffuse Reflectance
Lamp 20W Tungsten Halogen Lamp
Sampling Port Ø 18mm (~0.71in)
Operating System Windows-based Touch Screen Tablet
Software BWSpec® Mobile, BWSpec®, & SDK
Chemometrics Supported (BWIQ®)
Power Input 12V DC @ 6.6 Amps (Optional Battery)
Temperature 0° – 35°
Humidity 5 – 85%
Dimensions 15.7in x 10.2in x 9.8in (40cm x 26cm x 25cm)
Weight ~17lbs (~8kg)

















Features:

  • Portable Rugged All-in-one Design
  • Touchscreen operation or external computer
  • Press-holder and optional turntable sample stage
  • Various data format options available.
