HAAKE™ MARS™ iQ Rotational Rheometers
HAAKE™ MARS™ iQ Rotational Rheometers
The Thermo ScientificTM HAAKETM MARSTM iQ Rheometer Series provides extensive flexibility and ease-of-use for daily quality control requirements.
- Texture analysis of solid samples with fixtures for bending, breaking or squeezing tests
- Universal container holder for measurements in original sample containers
- Electrical temperature module for parallel plates with active upper heater for tests up to 400 °C
- Disposable, parallel plate measuring geometries eliminate timeconsuming cleaning
- Comprehensive pressure cell portfolio for tests up to 600 bar and 300 °C
- Tribology cell based on ball-on-three-plates principle for testing friction, lubrication and wear
- Serrated or sandblasted measuring geometries to eliminate wall slip of complex fluids
- Optional 21 CFR part 11 module for HAAKE RheoWin Software to meet FDA requirements
- Variety of sample covers including solvent trap to minimize solvent evaporation
- Pin or ring rotor for investigation of drying processes
- Large dimension building material cell with exchangeable lamella profiles
- Coaxial cylinders with helical grooves or serration to avoid sedimentation and wall slip
Introducing the HAAKE™ MARS™ iQ Rotational Rheometers
Thermo Scientific™ HAAKE™ MARS™ iQ Rotational Rheometers ensure intuitive, reliable and flexible rheological measurements. Everything about this QC rheometer is designed to provide intuitive handling and fast, reliable results. A sophisticated touchscreen enables standard operating procedures to be run right from rheometer itself. “Connect Assist” functionality guides users for failure-free measurement.
Choose a HAAKE MARS iQ Rheometer with either the ball bearing or air bearing system to suit your lab. A broad range of accessories helps meet the ever-greater testing demands on QC labs.
HAAKE MARS iQ Rotational Rheometers are the replacements for the discontinued Thermo Scientific™ HAAKE™ RheoStress™ 1 Rheometer and Thermo Scientific™ HAAKE™ RotoVisco™ 1 Rotational Rheometer.
Key Features
HAAKE MARS iQ Rheometers offer many advantages:
Intuitive Operations

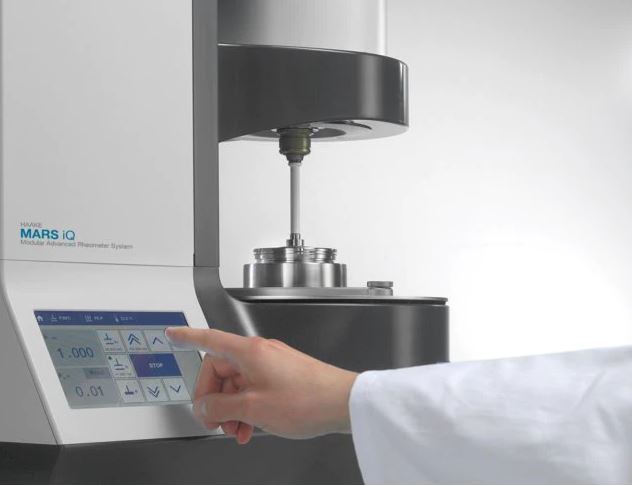

- Multifunctional 7’’ touchscreen for instrument operation and SOP execution right at your fingertips
- ‘‘Assist‘‘ functionalities to simplify operation and prevent mistakes
- ‘‘Connect Assist‘‘ quick coupling of measuring geometries and temperature modules with automatic recognition
- ‘‘Color Assist‘‘ color-coded plugs for quick, correct selection of temperature modules
- HAAKE™ RheoWin™ Rheology Software for extensive measuring flexibility with free updates (Optional 21 CFR part 11 module available)
Intelligent Design
- Folded H frame concept for greater stiffness and ultra-precise lift control with a wide travel range
- Durable material: high-performance mineral composite casting with high vibrational damping, minimal temperature expansion and high chemical resistance
- Next generation of highly dynamic, powerful EC motor with a mechanical or air bearing.
Individualized Configurations
- Broad scope of temperature modules, measuring geometries and application-oriented measuring cells, e.g., pressure cells, building material measuring cell or tribology measuring cell
- Sensitive normal force sensor measures axial forces in both directions for applications such as texture analysis
- Lateral and bottom access for customized test requirements
Key Benefits
Application solutions
The HAAKE MARS iQ Rheometers are well-suited for the rheological characterization of a broad range of samples from low-viscous or water-like up to stiff and paste-like semisolids:
- Investigation of paints, coatings and inks: shear viscosity, thixotropy, yield stress, shear recovery, levelling and sagging behavior
- Rheology and textural properties of foods and foodstuffs: shear viscosity, yield stress, tribology, texture analysis (axial bending, breaking, squeezing tests), phase transition
- Rheology of cosmetics and pharmaceuticals: viscosity, yield stress, viscoelastic properties, stability tests
- Rheology of polymer (e.g. polymer melts and solutions): viscoelasticity, phase transitions (glass transition, crystallization, melting), processing behavior (hot melt extrusion, molding, spinning), molecular weight, curing
- Rheology of petrochemicals (crude oils, fracking liquids and drilling fluids): viscosity, yield stress, pressure dependent properties, stability tests, wax deposition, wax appearance temperature (WAT)
- Dynamic shear rheometer (DSR) tests according to AASHTO, ASTM and DIN used for bitumen and asphalt
- Construction and building material (cement paste and slurries): flow properties of suspensions with large particles
Trust the Experts at Spectra Research Corporation
Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.
Specifications
| Catalog number | Unit Size | Description | Frequency Range | Angular Resolution | Price (CAD) | |
|---|---|---|---|---|---|---|
| 379-0800 | Each | HAAKE MARS iQ Rheometer – ball-bearing | 0.01 to 20 Hz | 0.63 µrad | Request A Quote |
|
| Frequency Range | 0.01 to 20 Hz |
| Torque Range | Min. torque rotation: 0.2 mNm Max. torque rotation: 125 mNm Min. torque oscillation: 0.2 mNm Max torque oscillation: 125 mNm Torque resolution: 2.0 µNm |
| Angular Resolution | 0.63 µrad |
| Weight (Metric) | 57 kg |
| Description | HAAKE MARS iQ Rheometer – ball-bearing |
| Operating Temperature Range | Depending on temperature module, cooling option and upper hood Min. temperature: -60 °C Max. temperature: 400 °C |
| Speed Range | Max. lift travel: 230 mm Gap resolution: 0.05 µm Min. lift speed: 0.05 µm/s Max. lift speed: 20 mm/s |
| Dimensions (L x W x H) | 480 x 390 x 670 mm |
| Rotational Speed Range | Min. angular velocity: 0.001 rad/s Max. angular velocity: 209.4 rad/s Min. rotation speed: 0.01 rpm Max rotation speed: 2000 rpm |
| Unit Size | Each |
| Catalog number | Unit Size | Temperature Range (Metric) | Frequency Range | Angular Resolution | Price (CAD) | |
|---|---|---|---|---|---|---|
| 379-0700 | Each | HAAKE MARS iQ Rheometer – air-bearing | 0.0001 to 100 Hz | 0.63 µrad | Request A Quote |
|
| Frequency Range | 0.0001 to 100 Hz |
| Torque Range | Min. torque rotation: 0.001 mNm Max. torque rotation: 150 mNm Min. torque oscillation: 0.001 mNm Max torque oscillation: 150 mNm Torque resolution: 0.007 µNm |
| Angular Resolution | 0.63 µrad |
| Weight (Metric) | 57 kg |
| Normal Force | Min. normal force (N): 0.01 Max. normal force (N): 50 Normal force resolution (N): 0.001 |
| Description | HAAKE MARS iQ Rheometer – air-bearing |
| Operating Temperature Range | Depending on temperature module, cooling option and upper hood Min. temperature: -60 °C Max. temperature: 400 °C |
| Speed Range | Max. lift travel: 230 mm Gap resolution: 0.05 µm Min. lift speed: 0.05 µm/s Max. lift speed: 20 mm/s |
| Dimensions (L x W x H) | 480 x 390 x 670 mm |
| Rotational Speed Range | Min. angular velocity: 0.001 rad/s Max. angular velocity: 209.4 rad/s Min. rotation speed: 0.01 rpm Max rotation speed: 2000 rpm |
| Unit Size | Each |
Datasheet
