Description

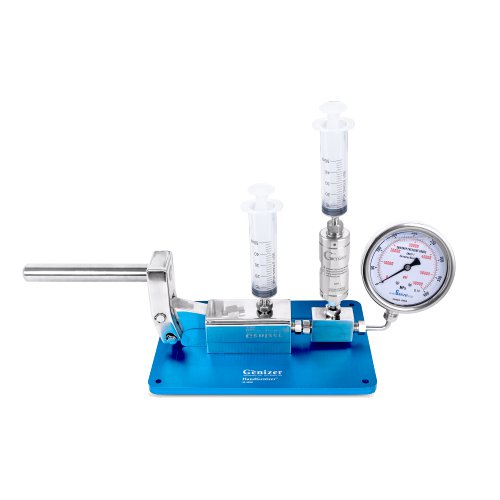

The HandGenizer is an environmentally and budget-friendly mini homogenizer compared to hydraulic or pneumatic liquid processors. It’s a manual homogenizer that is hand-operated by moving the handle up and down to generate high pressure on samples. Additionally, it requires no PLC control system, no electricity and is ideal for simple experimental tasks, especially when dealing with small amounts of liquid nano-emulsions.

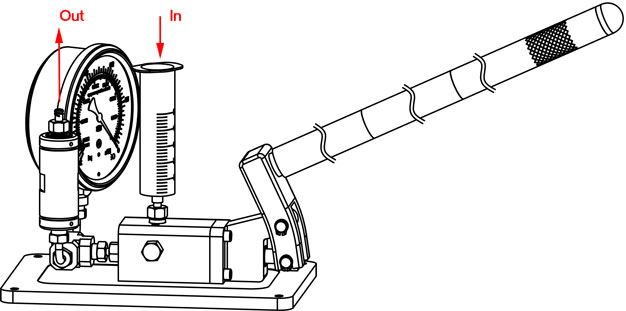

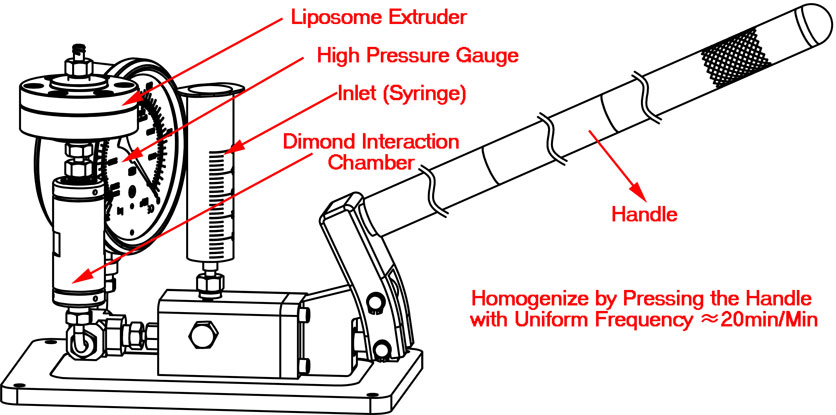

The mini pump of the HandGenizer is designed to supply the desired pressure to the product stream. When lifting the pump handle, a small portion of the sample will be drawn into the mini- pump body. By moving the pump handle way down to create a high-pressure profile (max. 30,000 psi) to the sample stream, this portion of the sample will pass through the check valve and through the Genizer Y-Type Diamond Interaction Chamber. It then exits the outlet and is collected.
Unique Benefits:
- Budget-Friendly Mini Homogenizer
- Portable design deliver the light weight and small dimensions
- Pressure up to 30,000 psi (2,070 bar)
- Manual Operation: No need compressed air or electricity
- CE Compliant
Application:
- Nanodispersions, nanoemulsions and nanotube
- Cell disruption
- Micro/nanoencapsulation in polymers, liposomes and oils
- Solid dispersion and suspension, deagglomeration
Performance:

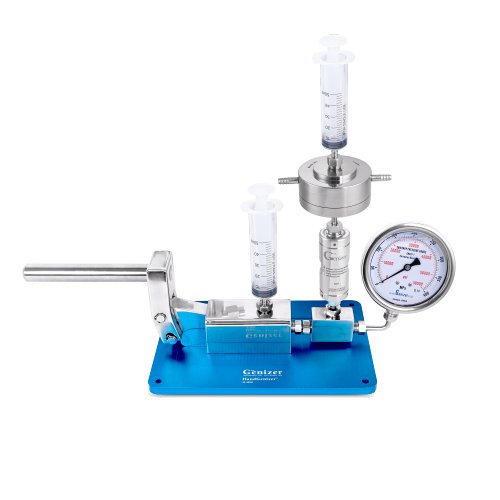

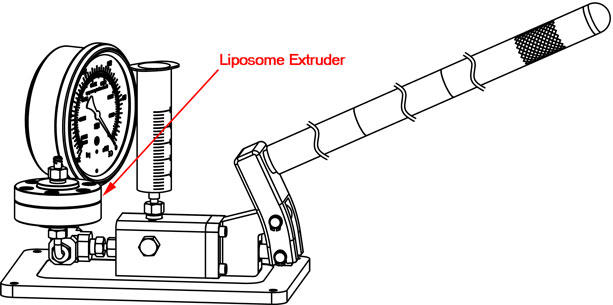

- Can be used as a high pressure pump for sanitary applications, such as a liposome extruder.
- Change the high pressure gauge with a plug for reducing the dead volume.
- Ultra-high pressure up to 30,000 psi. Adjustable 3 stage: 1st stage: 10,000 psi; 2nd stage: 20,000 psi; 3rd stage: 30,000 psi
