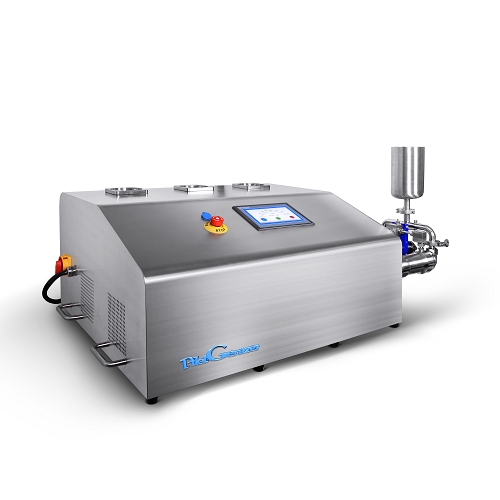

PilotGenizer (Pilot Dual Pump)

NanoGenizer is a laboratory high-pressure processing device. It is an electrically driven and bench-top, high-pressure homogenizer requiring no compressed air or hydraulic oil to achieve a maximum 3,062 bar (45,000 psi) operating pressure.

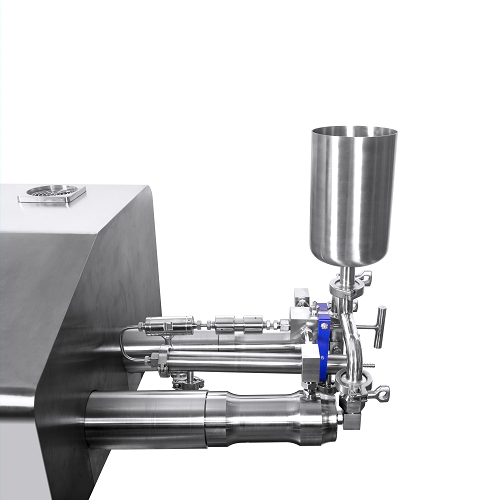

NanoGenizer high-pressure homogenizer is composed of a feed reservoir, high-pressure pump, transducer, PLC control panel and microfluidics diamond interaction chamber. The sanitary pump system of the NanoGenizer high-pressure homogenizer is able to supply the desired pressure to the product stream and push it through the micron chamber (microreactor) to create high shear rates and strong impact within the stream. This process results in uniform particle distribution and smaller particle sizes.

ProdGenizer series electric ultrahigh pressure homogenizer is equipment operated with a touch screen and controlled intelligently by a program. It can be used for industry production preparation of fat emulsion, liposome, nanosuspension, lipid microsphere, nanoemulsions, dairy products, infusion solutions, cell disruption, juice homogeneity, fine chemical engineering, dye, etc. The maximum working pressure is 30,000 Psi/2,000 Bar. All parts touching with the medium are FDA-approved sanitary materials including 316L stainless steel, 17- 4ph stainless steel, titanium alloy, tungsten carbide, PTFE, and UHMWPE.
