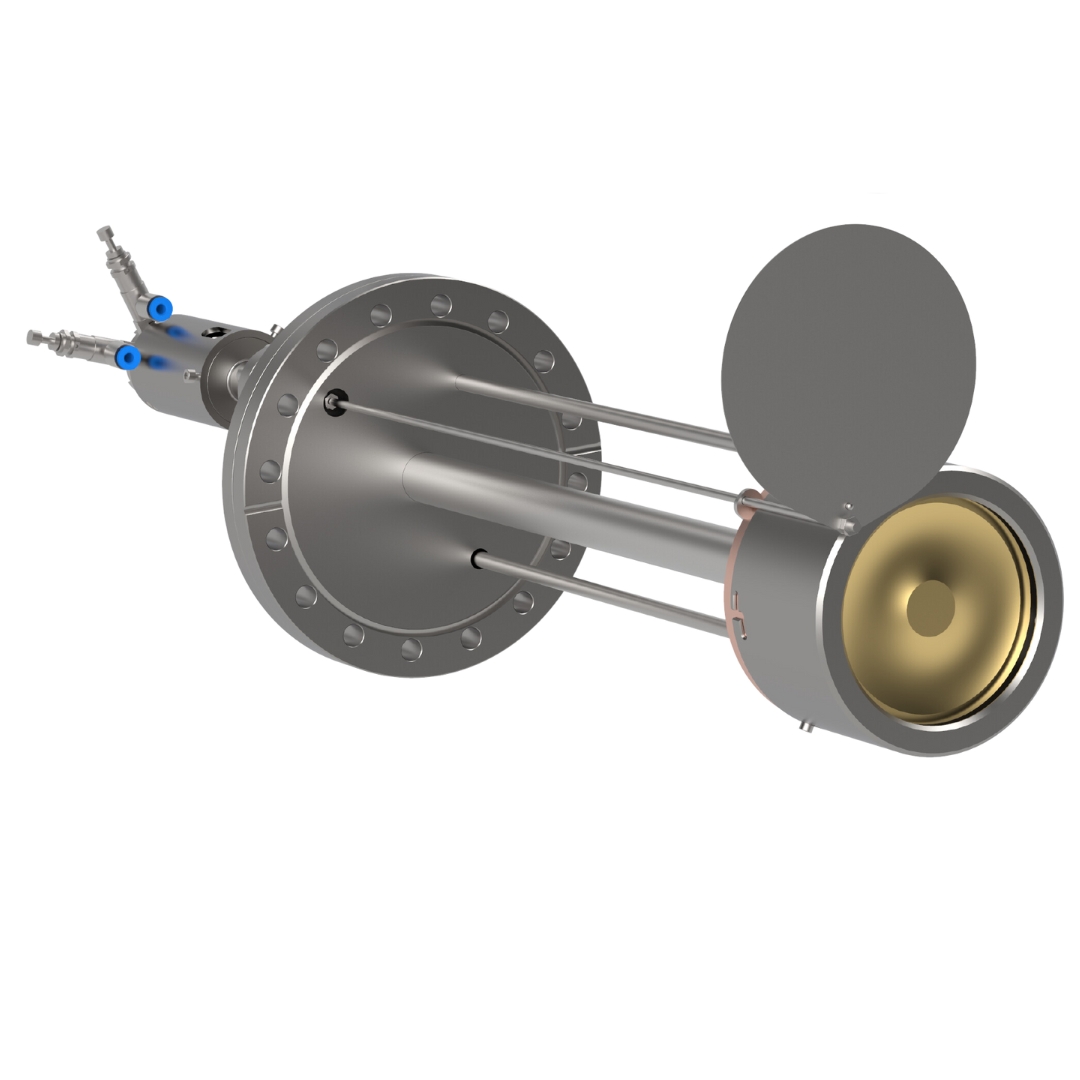

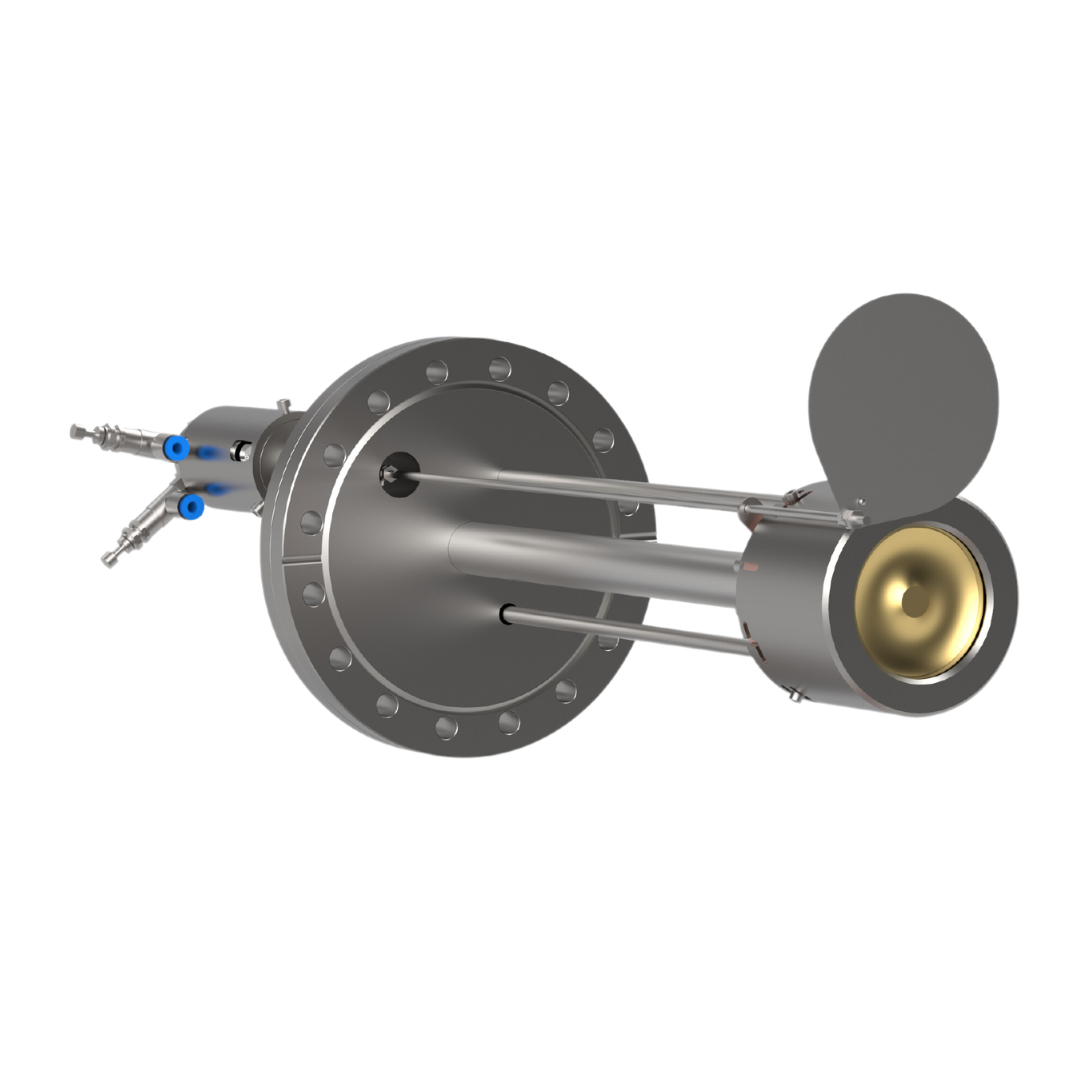

UHV Magnetron Sputter Sources: Stellar
Product Images for UHV Magnetron Sputter Sources
Product Images for UHV Magnetron Sputter Sources 2

UHV Magnetron Sputter Sources: Stellar

Key Features

  • Bakeable upto 250°C (no need to remove magnets)

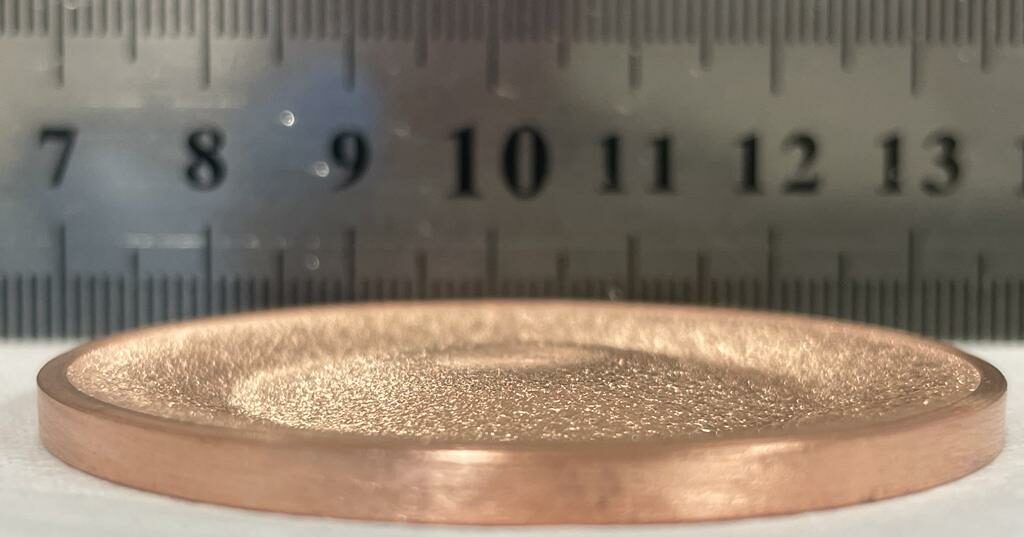

  • Excellent target utilization of up to 40%
  • Standard and high-strength magnets for magnetic materials
  • Options for balanced or unbalanced magnet configurations
  • Simple bayonet clamp for straightforward target mounting
  • Includes a choice between manual or pneumatically controlled shutter
  • Available sputter target sizes: 1-inch, 2-inch, and 3-inch
  • User-friendly design with easily exchangeable magnets
  • Customizable in-vacuum length
  • Compatible with DC, RF, Pulsed DC (unipolar or bipolar), and HiPIMS power supplies



SKU: UHVMAGSPUTTER Category:



Description

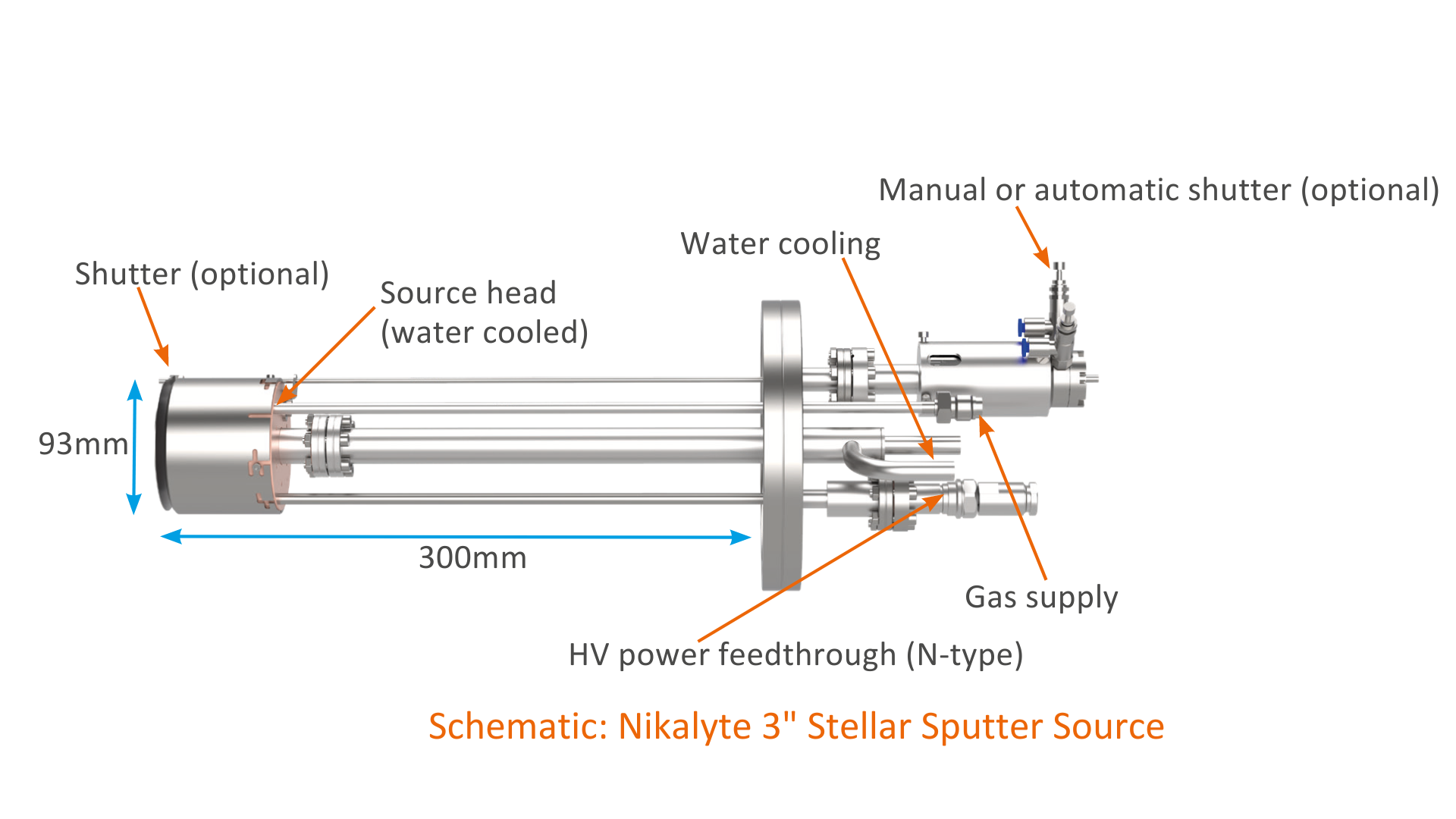

Nikalyte’s Stellar Sputter Sources are high-quality magnetron sputter sources that can be supplied individually or integrated into a custom-built  NEXUS and NL-FLEX vacuum system. These circular magnetron sputter sources are compatible with all UHV systems.

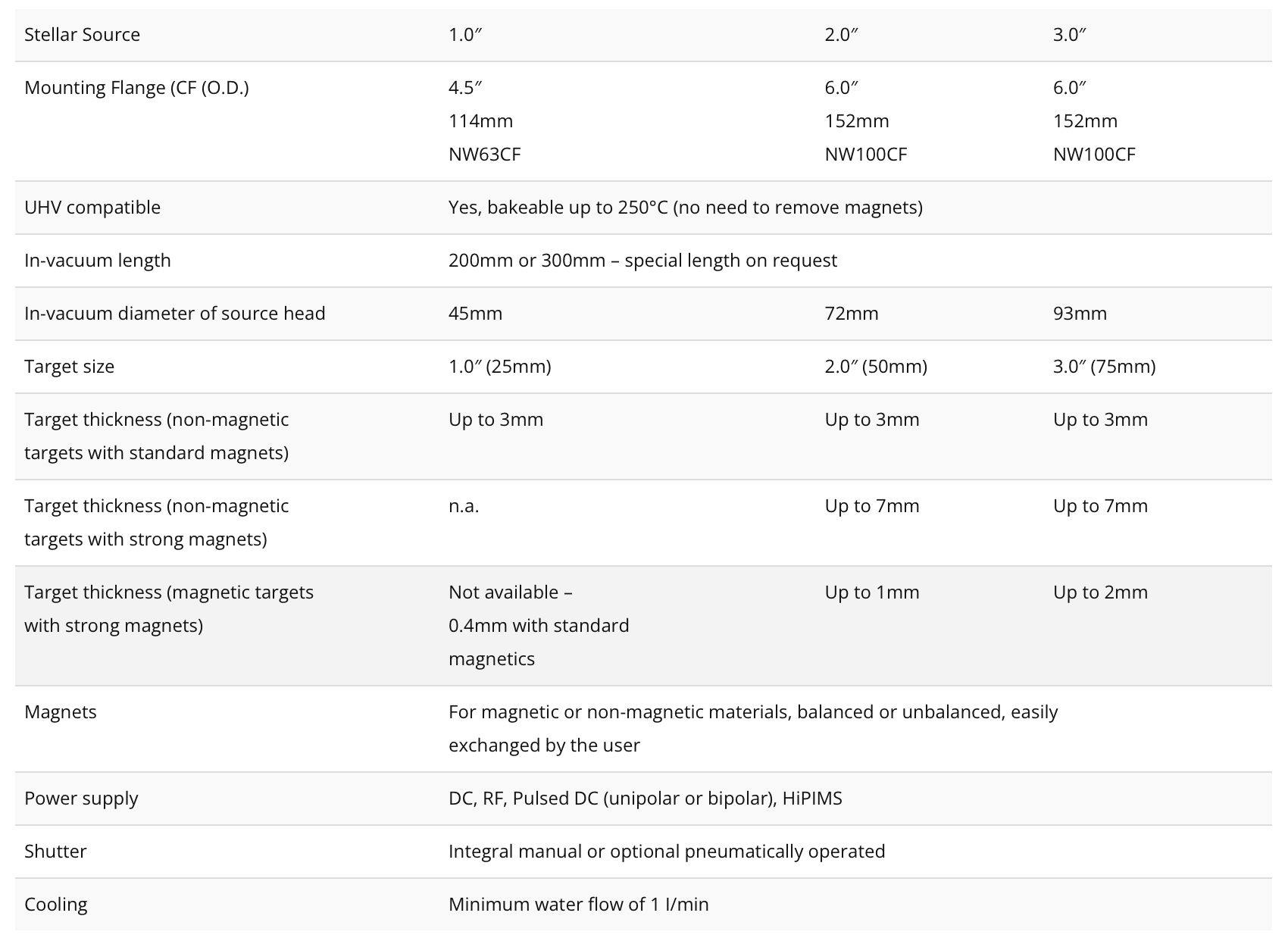

Specifications for UHV Magnetron Sputter Sources from Nikalyte:

Specifications for UHV Magnetron Sputter Sources from NikaLyte by SRC

View more products from NikaLyte.

Download Data Sheet
